Build Ubuntu 24.04 VM on vSphere with Packer
A couple of years ago I did a post on how to use Packer to build Ubuntu 20.04 VM on vSphere. You can find it here. It go a lot of reads and now I’ve made an update focused on 24.04 and also changed from yaml to hcl code. I did this because I’m on a mission to move VM’s from an old KVM host to vSphere, instead of using some shady migration tool I will rebuild the VM’s and move the configuration files. I want to free the KVM host to install Proxmox instead, more on that in a later post.
Let’s hear it from the source:
Packer is a community tool for creating identical machine images for multiple platforms from a single source configuration. Packer is lightweight, runs on every major operating system, and is highly performant, creating machine images for multiple platforms in parallel. Packer does not replace configuration management like Chef or Puppet. In fact, when building images, Packer is able to use tools like Chef or Puppet to install software onto the image.
So basically, you can use Packer to build VM’s from ISO’s based on code. Infrastructure as code, just how we like it. Also, it’s easy to implement in your CI/CD pipeline to go full hipster.
Packer builds the VM from the desired ISO and is also able to perform advanced provision tasks. Also, I’m able to inject my SSH public key to enable key-based authentication on the template.
I’ll later use this VM template as a source when deploying infrastructure resources with Terraform, but more on that in another blog post.
I will not go through the installation process in this blog. Please visit the getting started guide on packer.io if you need help installing. You’ll find it here.
In my home lab, I’m now able to build a fresh template in ~12 minutes. That’s pretty good!
You’ll need these files. The ubuntu.pkr.hcl file is where you configure settings for Packer to build and provision the VM, connect to vSphere, and so on. The ubuntu.auto.pkrvars.hcl contains environment specific settings such as vCenter password, so keep it well guarded. The user-data and meta-data files are used for unattended installation of Ubuntu. Although only the user-data files contain information, both must be present. Packer uses these files and mounts them as CDROM’s to the vSphere guest VM.
As a bonus I’ve added docker-engine.sh, a shell script to be used as a Packer provisioner to install docker engine on my template, as all my VM’s use this to run containers.
❯ tree .
.
├── docker-engine.sh
├── http
│ ├── meta-data
│ └── user-data
├── ubuntu.auto.pkrvars.hcl
├── ubuntu.pkr.hcl
└── variables.pkr.hcl
2 directories, 6 files
Also, you’ll need to upload an ISO to the vSphere datastore and edit the iso_url variable. I’ve uploaded the ISO to my datastore2 datastore, as you see here.
#ubuntu.auto.pkrvars.hcl
iso_url = "[datastore2] ISO/ubuntu-24.04.3-live-server-amd64.iso"
So, I had some trouble with Packer where it failed to connect to SSH. The issue is that SSH is present when Ubuntu performs the unattended installation, then Ubuntu reboots and performs the cloud-init part and configures my user. Packer thinks the VM is ready on the first SSH connectivity.
Be sure to add this snippet to workaround the issue.
#ubuntu.pkr.hcl
ssh_timeout = "60m"
ssh_handshake_attempts = 100
You need to generate a password salted with SHA512. Unfortnaetly I faced some issues with my Mac where mkpasswd is not present. Well, docker to the rescue! The below command works fine to generate the password with the help of docker.
> docker run --rm -ti alpine:latest mkpasswd -m sha512
Password:
$6$eZsKuZ3lwrfwvrJ3$FSmB.RPl9doTTe57fHDvbMjyu/wFZOcNfuGZ82id4ZZYbUZ0P9GP6ZWamYK3JZzwnMIjL1WEVczqHf03.IqYS/
Edit the user-data file with the newly created password.
#user-data
identity:
hostname: ubuntu-packer
username: ubnt
password: $6$RAVeOPg.9rJylcnK$tm6KVpRXxTGb0et.1PQcmLVCFLjIVaLye.Weiizxw3ecGRI2kA0JH7nFxkJCz4oeZphSO4qzYSwncE/s34UHg0
First, you’ll need your SSH public key if you want to enable key-based authentication in your template.
❯ cat ~/.ssh/id_rsa.pub
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQCi9eAu6KBaShdcL4pxi6/sJp+IS6nCKexcjQdwFLxg+EoiT2MTAnMsjnfi570het+VV+iOigcZLuRwEcAPh6rSQOtpikmpV6WFjzToWq9aUxDrxWsp/iEPHp+sbjrlsdnGvLGY9XhmPs9s5I8xFQbwF6ilhMIQm+RxtGJJuPUWaF+uXo+3CB91A6bK/rjs97iAjrPZRs0vo5hJGqrIGFi3WP9hf8hF9oWz2BiLRYBib3il6lsAl4Ca0sI//gNM0Ztj4gB7qv1+uPz157bk0IZoN285/72l/rUZVSPIwO+QFZFK07FsyVrpAgMlHk65BiSAO4DtolZEArfXRE1g1DH/ mail@example.com
Secondly, inject the key in the user-data file.
#user-data
ssh:
install-server: yes
allow-pw: true
authorized-keys:
- ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQCi9eAu6KBaShdcL4pxi6/sJp+IS6nCKexcjQdwFLxg+EoiT2MTAnMsjnfi570het+VV+iOigcZLuRwEcAPh6rSQOtpikmpV6WFjzToWq9aUxDrxWsp/iEPHp+sbjrlsdnGvLGY9XhmPs9s5I8xFQbwF6ilhMIQm+RxtGJJuPUWaF+uXo+3CB91A6bK/rjs97iAjrPZRs0vo5hJGqrIGFi3WP9hf8hF9oWz2BiLRYBib3il6lsAl4Ca0sI//gNM0Ztj4gB7qv1+uPz157bk0IZoN285/72l/rUZVSPIwO+QFZFK07FsyVrpAgMlHk65BiSAO4DtolZEArfXRE1g1DH/ mail@example.com

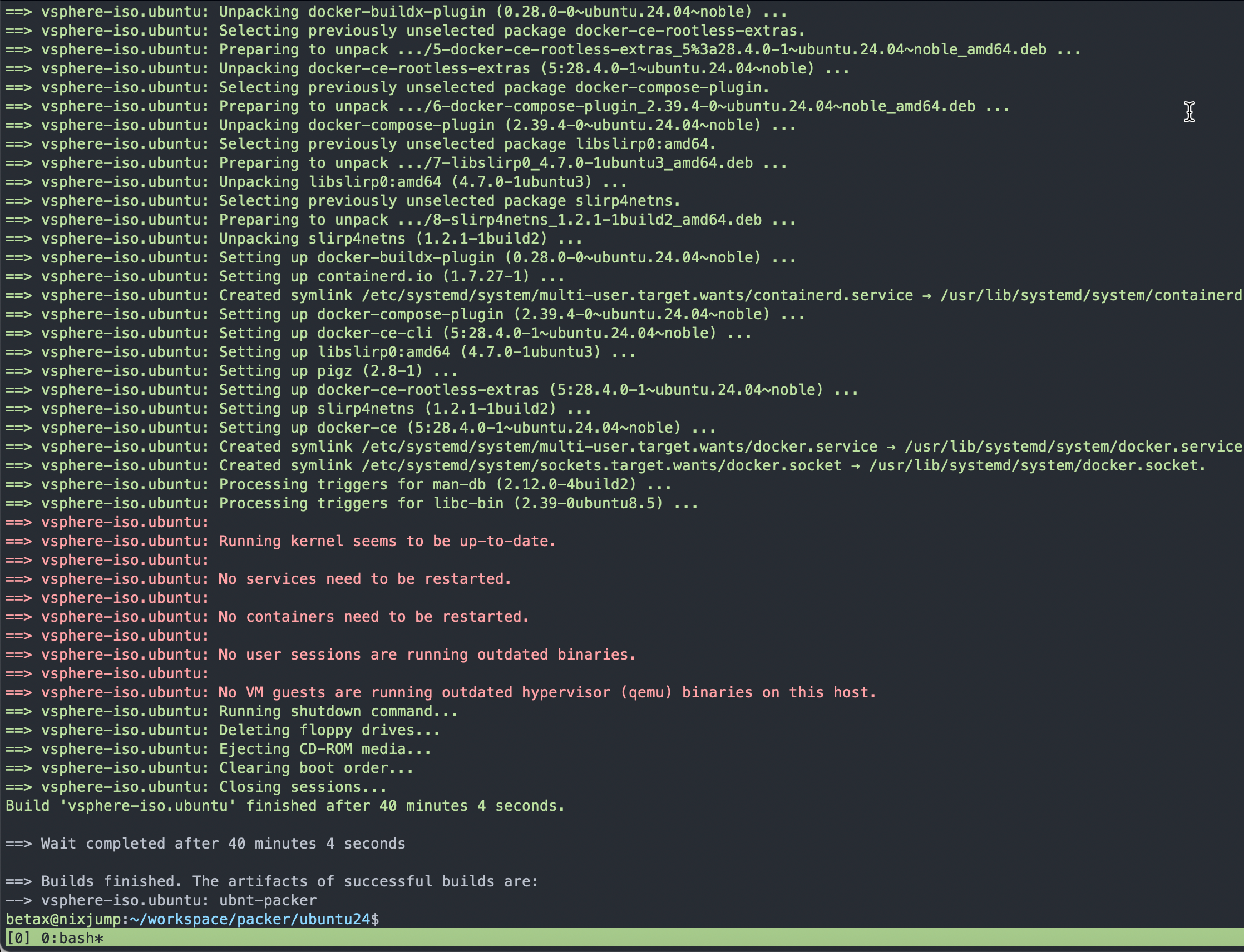

When you’ve created the required files and filled in all the variables, you’re ready to build the VM. Use the below to start the build. If you’re overwriting the VM with each iteration, use the -force flag.
❯ packer init .
❯ packer build -force .

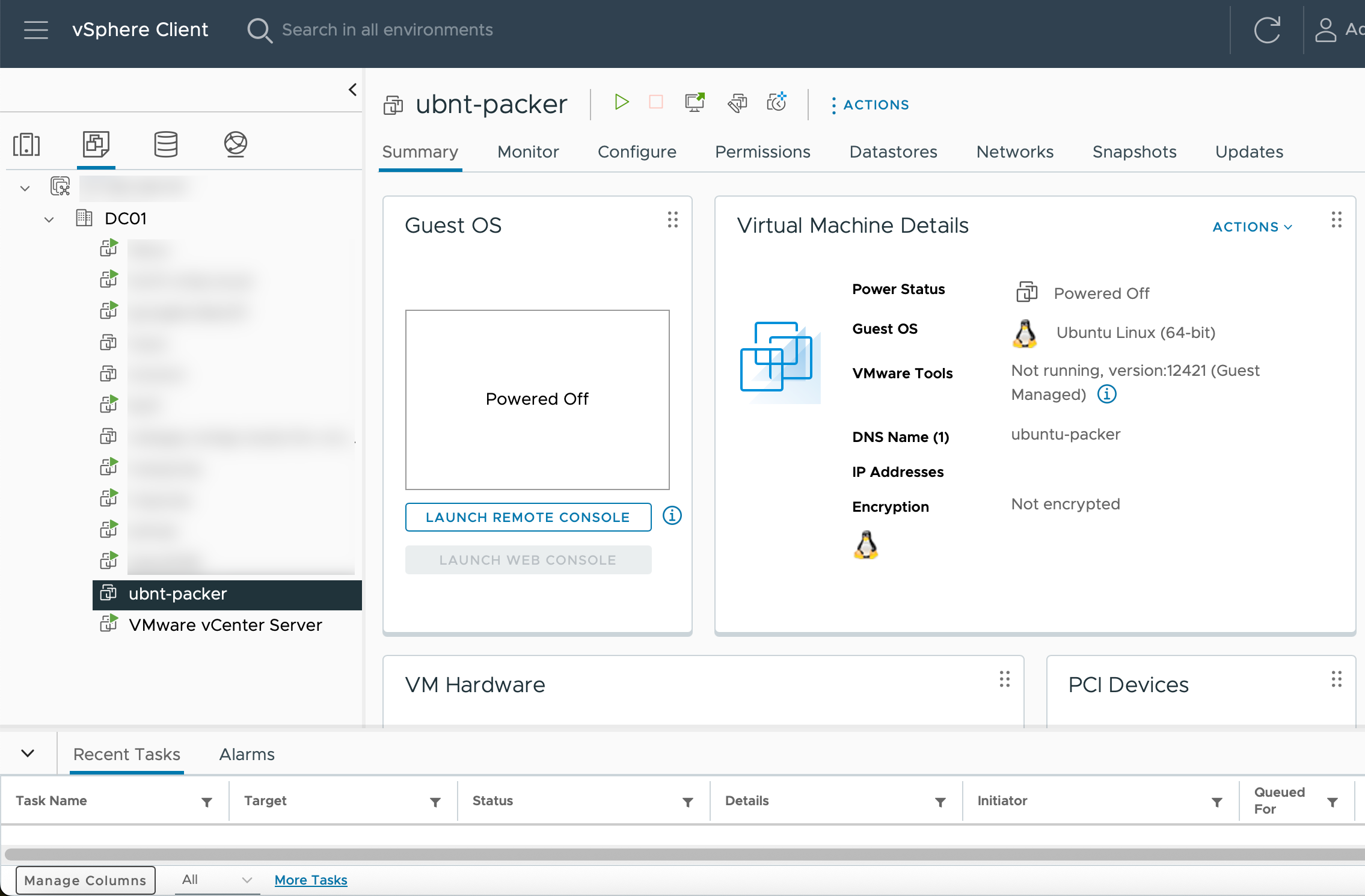

When you’re done, you’ll find the template in vSphere ready for use!
ubuntu.pkr.hcl
packer {
required_plugins {
vsphere = {
source = "github.com/hashicorp/vsphere"
version = ">= 1.0.0"
}
}
}
source "vsphere-iso" "ubuntu" {
# Point to your ESXi host here
vcenter_server = var.vsphere_server
#host = var.vsphere_server
username = var.vsphere_user
password = var.vsphere_password
insecure_connection = true
# Remove or comment these when using standalone ESXi
datacenter = var.vsphere_datacenter
cluster = var.vsphere_cluster
datastore = var.vsphere_datastore
guest_os_type = "ubuntu64Guest"
CPUs = var.vm_cpu_num
RAM = var.vm_mem_size
RAM_reserve_all = false
# Must be a list for your plugin version
disk_controller_type = ["pvscsi"]
storage {
disk_size = var.vm_disk_size
disk_thin_provisioned = true
}
network_adapters {
network = var.vsphere_network # ESXi portgroup name
network_card = "vmxnet3"
}
vm_name = var.vm_name
notes = "Build via Packer"
convert_to_template = false
ssh_username = "ubnt"
ssh_password = "ubnt"
ssh_timeout = "60m"
ssh_handshake_attempts = 100
iso_paths = [var.iso_url]
cd_files = [
"./http/user-data",
"./http/meta-data",
]
cd_label = "cidata"
boot_wait = "10s"
boot_command = [
"c", "<wait3s>",
"linux /casper/vmlinuz autoinstall ds=nocloud;s=/cdrom/", "<enter><wait3s>",
"initrd /casper/initrd", "<enter><wait3s>",
"boot", "<enter>",
]
shutdown_command = "echo 'ubnt'|sudo -S shutdown -P now"
}
build {
sources = ["source.vsphere-iso.ubuntu"]
provisioner "shell" {
inline = [
"echo set debconf to Noninteractive",
"echo 'debconf debconf/frontend select Noninteractive' | sudo debconf-set-selections" ]
}
provisioner "shell" {
inline = [
"sudo apt-get -y install util-linux-extra" ]
}
provisioner "shell" {
script = "./docker-engine.sh"
pause_before = "10s"
}
}
docker-engine.sh
#docker-engine.sh
sleep 30
# Add Docker's official GPG key:
sudo apt-get update
sudo apt-get -y install ca-certificates curl
sudo install -m 0755 -d /etc/apt/keyrings
sudo curl -fsSL https://download.docker.com/linux/ubuntu/gpg -o /etc/apt/keyrings/docker.asc
sudo chmod a+r /etc/apt/keyrings/docker.asc
# Add the repository to Apt sources:
echo \
"deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.asc] https://download.docker.com/linux/ubuntu \
$(. /etc/os-release && echo "${UBUNTU_CODENAME:-$VERSION_CODENAME}") stable" | \
sudo tee /etc/apt/sources.list.d/docker.list > /dev/null
sudo apt-get update
sudo apt-get -y install docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin
ubuntu.auto.pkrvars.hcl
# WARNING: This file contains secrets. Don't commit it. Add to .gitignore. 🔒
vsphere_server = "10.128.128.101" # vCenter address if using datacenter/cluster
vsphere_user = "administrator@vsphere.local"
vsphere_password = "supersecretpassword"
vsphere_datacenter = "Datacenter"
vsphere_cluster = "Cluster" # Must be the vSphere Cluster name or ESXi hostname
vsphere_network = "VLAN128"
vsphere_datastore = "datastore2"
vm_name = "ubnt-packer"
vm_cpu_num = 1
vm_mem_size = 1024
vm_disk_size = 25600
iso_url = "[datastore2] ISO/ubuntu-24.04.3-live-server-amd64.iso"
variables.pkr.hcl
variable "vsphere_server" {
type = string
}
variable "vsphere_user" {
type = string
}
variable "vsphere_password" {
type = string
sensitive = true
}
variable "vsphere_datacenter" {
type = string
}
variable "vsphere_cluster" {
type = string
}
variable "vsphere_network" {
type = string
}
variable "vsphere_datastore" {
type = string
}
variable "vm_name" {
type = string
}
variable "vm_cpu_num" {
type = number
}
variable "vm_mem_size" {
type = number
}
variable "vm_disk_size" {
type = number
}
variable "iso_url" {
type = string
}
user-data
#cloud-config
autoinstall:
version: 1
locale: en_US
keyboard:
layout: se
storage:
layout:
name: lvm
identity:
hostname: ubuntu-packer
username: ubnt
password: $6$eZsKuZ3lwrfwvrJ3$FSmB.RPl9doTTe57fHDvbMjyu/wFZOcNfuGZ82id4ZZYbUZ0P9GP6ZWamYK3JZzwnMIjL1WEVczqHf03.IqYS/
ssh:
install-server: yes
allow-pw: true
authorized-keys:
- ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQCi9eAu6KBaShdcL4pxi6/sJp+IS6nCKexcjQdwFLxg+EoiT2MTAnMsjnfi570het+VV+iOigcZLuRwEcAPh6rSQOtpikmpV6WFjzToWq9aUxDrxWsp/iEPHp+sbjrlsdnGvLGY9XhmPs9s5I8xFQbwF6ilhMIQm+RxtGJJuPUWaF+uXo+3CB91A6bK/rjs97iAjrPZRs0vo5hJGqrIGFi3WP9hf8hF9oWz2BiLRYBib3il6lsAl4Ca0sI//gNM0Ztj4gB7qv1+uPz157bk0IZoN285/72l/rUZVSPIwO+QFZFK07FsyVrpAgMlHk65BiSAO4DtolZEArfXRE1g1DH/ mail@example.com
user-data:
disable_root: false
late-commands:
- echo 'ubnt ALL=(ALL) NOPASSWD:ALL' > /target/etc/sudoers.d/ubuntu
